SPECIFICATIONS
Brand	ASUS
Series	TUF GAMING B760-PLUS WIFI D4
Model	90MB1DF0-M0EAY0
Form Factor	ATX Form Factor. 30.5 cm x 24.4 cm.
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*.
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 192GB, DDR4. 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II.
Graphics	1 x DisplayPort. 1 x HDMI® port* . * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. Supports max. 4K@60Hz as specified in DisplayPort 1.4.. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen). 1 x PCIe 5.0 x16 slot. Intel® B760 Chipset. 1 x PCIe 3.0 x16 slot (supports x4 mode). 2 x PCIe 3.0 x1 slots. * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® Core™ Processors (14th & 13th & 12th Gen). M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet. TUF LANGuard.
Wireless & Bluetooth	Wi-Fi 6. 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2*.
USB	Rear USB (Total 6 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 1 x USB 2.0 port (1 x Type-A). Front USB (Total 7 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback Audio Features. - Audio Shielding. - Rear optical S/PDIF out port. - Premium audio capacitors. - Dedicated audio PCB layers. - Audio cover.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 1 x USB 2.0 port (1 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x Wi-Fi Module. 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks. 1 x Optical S/PDIF out port.
Internal I/O Connectors	1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 4 x 4-pin Chassis Fan headers. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 1 x 4-pin +12V Power connector. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ (USB4®) header.
Special Features	ASUS TUF PROTECTION. - DIGI+ VRM (- Digital power design with DrMOS). - ESD Guards. - TUF LANGuard. - Overvoltage Protection. - SafeSlot Core+. - Stainless-Steel Back I/O. ASUS Q-Design. - M.2 Q-Latch. - Q-DIMM. - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). - Q-Slot. ASUS Thermal Solution. - M.2 heatsink. - VRM heatsink design. ASUS EZ DIY. - CPU Socket lever protector. - ProCool. - Pre-mounted I/O shield. - SafeSlot Core+. - SafeDIMM. Aura Sync. - Aura RGB header. - Addressable Gen 2 headers.
Software Features	ASUS Exclusive Software. Armoury Crate. - Aura Creator. - Aura Sync. - Fan Xpert 4. - Power Saving. - Two-Way AI Noise Cancellation. AI Suite 3. - DIGI+ VRM. - PC Cleaner. TUF GAMING CPU-Z. DTS Audio Processing. MyASUS. Norton 360 for Gamers. WinRAR. UEFI BIOS. ASUS EZ DIY. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 3. - ASUS UEFI BIOS EZ Mode.
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	2 x SATA 6Gb/s cables. 1 x ASUS Wi-Fi moving antenna. 1 x TUF Gaming sticker. 2 x M.2 Rubber Packages. 1 x Screw package for M.2 SSD. 1 x TUF Certification card. 1 x User guide.
Operating System	Windows® 11. Windows® 10 64-bit.

The ASUS TUF GAMING B760-PLUS WIFI D4 DDR4 Raptor Lake LGA 1700 ATX Motherboard is a robust and versatile motherboard designed to cater to gamers and power users who demand high performance and reliability. It supports Intel’s 12th and 13th Gen processors, featuring the LGA 1700 socket, and offers a range of advanced features that make it a solid foundation for building a powerful gaming or professional PC.

One of the standout features of the ASUS TUF GAMING B760-PLUS WIFI D4 is its support for DDR4 memory. The motherboard can accommodate up to 128GB of RAM across four DIMM slots, with memory speeds reaching up to 5333 MHz (OC). This ensures that the system can handle demanding applications and multitasking scenarios with ease, providing gamers and professionals with the performance needed for smooth and responsive computing.

The ASUS TUF GAMING B760-PLUS WIFI D4 offers extensive connectivity options, including two M.2 slots and six SATA 6Gb/s ports for diverse storage configurations. The M.2 slots support PCIe 4.0, enabling faster data transfer rates ideal for NVMe SSDs, which significantly improve load times and overall system responsiveness. Additionally, the motherboard provides a variety of USB ports, including USB 3.2 Gen 2 and USB 2.0, to ensure compatibility with a wide range of peripherals and fast data transfer speeds.

Power delivery on the ASUS TUF GAMING B760-PLUS WIFI D4 is designed for stability and efficiency, featuring a 12+1 DrMOS power stage configuration. This setup ensures precise power delivery to the CPU, enhancing system performance and stability, even under heavy loads. High-quality components, such as durable capacitors and chokes, contribute to the motherboard’s longevity and reliability, making it a dependable choice for demanding computing environments.

Cooling is a critical aspect of maintaining system performance, and the ASUS TUF GAMING B760-PLUS WIFI D4 excels in this area. The motherboard includes multiple fan headers, hybrid fan headers, and a dedicated AIO pump header for advanced cooling solutions. ASUS’s Fan Xpert 4 software allows users to fine-tune cooling settings, ensuring optimal thermal performance and quiet operation. These features enable users to create customized cooling setups tailored to their specific needs.

The ASUS TUF GAMING B760-PLUS WIFI D4 also places a strong emphasis on audio quality. It is equipped with high-definition audio powered by the Realtek S1200A codec, which delivers immersive and clear sound. The motherboard also features audio shielding and premium Japanese capacitors, which help reduce noise and ensure high-fidelity sound, enhancing the overall gaming and multimedia experience.

Connectivity is further enhanced with built-in Wi-Fi 6 and 2.5Gb Ethernet, ensuring fast and reliable internet connections. Wi-Fi 6 offers improved network efficiency and lower latency, making it ideal for online gaming and streaming. The motherboard also includes Bluetooth 5.2, providing seamless connectivity with a variety of wireless devices, such as headsets and controllers.

Aesthetically, the ASUS TUF GAMING B760-PLUS WIFI D4 features a rugged design with a black PCB and striking grey and yellow accents, reflecting the TUF Gaming brand’s durability and strength. The motherboard also includes ASUS Aura Sync RGB lighting, allowing users to customize the lighting to match their build’s theme. With support for a wide range of compatible RGB devices, users can create a visually cohesive and striking system.

This Motherboard is a powerful and versatile option for gamers and power users. Its support for the latest Intel processors, extensive connectivity options, robust power delivery, and comprehensive cooling solutions make it an excellent foundation for building a high-performance system. Whether you’re a gamer, content creator, or professional, this motherboard provides the features and performance needed to handle the most demanding tasks with ease.

Manufacturer’s Site: Link
Product Page: Link

Sold out

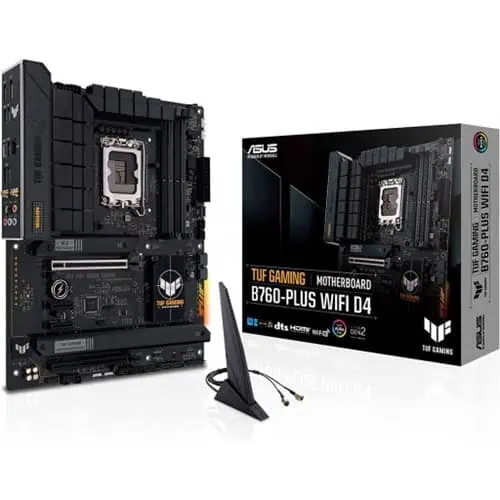

ASUS TUF GAMING B760-PLUS WIFI D4 DDR4 Raptor Lake LGA 1700 ATX Motherboard

Click to enlarge

Back to products

ASUS TUF GAMING B760-PLUS WIFI D4 DDR4 Raptor Lake LGA 1700 ATX Motherboard

Name: ASUS TUF GAMING B760-PLUS WIFI D4 DDR4 Raptor Lake LGA 1700 ATX Motherboard
SKU: 7656
Price: 3990.00 ZAR
Availability: OutOfStock

R3990,00

Out of stock

Compare

Add to wishlist

Categories: Intel Motherboards, Motherboards

Description
Reviews (0)

Description

SPECIFICATIONS
Brand	ASUS
Series	TUF GAMING B760-PLUS WIFI D4
Model	90MB1DF0-M0EAY0
Form Factor	ATX Form Factor. 30.5 cm x 24.4 cm.
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*.
Chipset	Intel® B760 Chipset
Memory	4 x DIMM, Max. 192GB, DDR4. 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II.
Graphics	1 x DisplayPort. 1 x HDMI® port* . * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. Supports max. 4K@60Hz as specified in DisplayPort 1.4.. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen). 1 x PCIe 5.0 x16 slot. Intel® B760 Chipset. 1 x PCIe 3.0 x16 slot (supports x4 mode). 2 x PCIe 3.0 x1 slots. * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports. Intel® Core™ Processors (14th & 13th & 12th Gen). M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). Intel® B760 Chipset. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet. TUF LANGuard.
Wireless & Bluetooth	Wi-Fi 6. 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax). Supports 2.4/5GHz frequency band. Bluetooth® v5.2*.
USB	Rear USB (Total 6 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 1 x USB 2.0 port (1 x Type-A). Front USB (Total 7 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback Audio Features. - Audio Shielding. - Rear optical S/PDIF out port. - Premium audio capacitors. - Dedicated audio PCB layers. - Audio cover.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 3 x USB 3.2 Gen 1 ports (3 x Type-A). 1 x USB 2.0 port (1 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x Wi-Fi Module. 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks. 1 x Optical S/PDIF out port.
Internal I/O Connectors	1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 4 x 4-pin Chassis Fan headers. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 1 x 4-pin +12V Power connector. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ (USB4®) header.
Special Features	ASUS TUF PROTECTION. - DIGI+ VRM (- Digital power design with DrMOS). - ESD Guards. - TUF LANGuard. - Overvoltage Protection. - SafeSlot Core+. - Stainless-Steel Back I/O. ASUS Q-Design. - M.2 Q-Latch. - Q-DIMM. - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). - Q-Slot. ASUS Thermal Solution. - M.2 heatsink. - VRM heatsink design. ASUS EZ DIY. - CPU Socket lever protector. - ProCool. - Pre-mounted I/O shield. - SafeSlot Core+. - SafeDIMM. Aura Sync. - Aura RGB header. - Addressable Gen 2 headers.
Software Features	ASUS Exclusive Software. Armoury Crate. - Aura Creator. - Aura Sync. - Fan Xpert 4. - Power Saving. - Two-Way AI Noise Cancellation. AI Suite 3. - DIGI+ VRM. - PC Cleaner. TUF GAMING CPU-Z. DTS Audio Processing. MyASUS. Norton 360 for Gamers. WinRAR. UEFI BIOS. ASUS EZ DIY. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 3. - ASUS UEFI BIOS EZ Mode.
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	2 x SATA 6Gb/s cables. 1 x ASUS Wi-Fi moving antenna. 1 x TUF Gaming sticker. 2 x M.2 Rubber Packages. 1 x Screw package for M.2 SSD. 1 x TUF Certification card. 1 x User guide.
Operating System	Windows® 11. Windows® 10 64-bit.
