SPECIFICATIONS | |
Brand | Gigabyte |
Series | B760M AORUS ELITE AX |
Model | GA-B760M-AORUS-ELITE-AX |
CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
Chipset | Intel® B760 Express Chipset |
Form Factor | Micro ATX Form Factor. |
Memory | Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules. |
Onboard Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. |
Audio | Realtek® Audio CODEC. |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
Wireless Communication module | Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0). WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. |
Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16). |
Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU). |
USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support. |
Internal I/O Connectors | 1 x 24-pin ATX main power connector. |
Back Panel Connectors | 2 x SMA antenna connectors (2T2R). |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage detection. |
BIOS | 1 x 256 Mbit flash. |
Unique Features | Support for GIGABYTE Control Center (GCC). |
Bundled Software | Norton® Internet Security (OEM version). |
Operating System | Support for Windows 11 64-bit. |

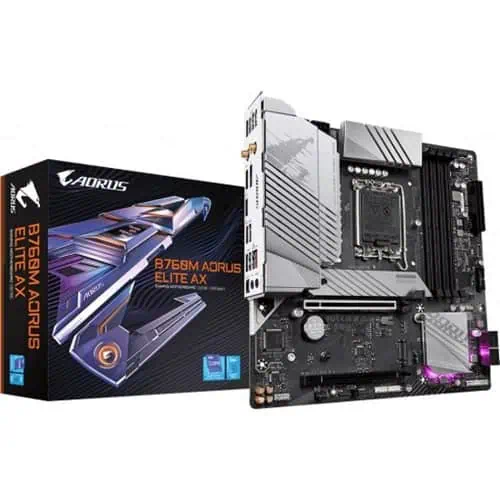

The Gigabyte GA-B760M-AORUS-ELITE-AX is a robust Micro-ATX motherboard designed to cater to the needs of gamers and PC enthusiasts. It is built on the Intel B760 chipset and supports the LGA 1700 socket, making it compatible with Intel’s 12th and 13th Gen processors, codenamed Alder Lake and Raptor Lake, respectively. This motherboard brings a balanced blend of performance, durability, and aesthetics, making it a solid choice for building a high-performance, compact gaming rig.
One of the key highlights of the GA-B760M-AORUS-ELITE-AX is its advanced thermal design. It features an extended heatsink with multiple cutouts to increase the surface area for heat dissipation, ensuring that critical components like the VRM and chipset remain cool even under heavy loads. The inclusion of high-quality thermal pads and a double-sided M.2 thermal guard further enhances its cooling efficiency, providing stability during intense gaming sessions or overclocking.
In terms of connectivity, this motherboard does not disappoint. It is equipped with WiFi 6E (802.11ax) and Bluetooth 5.2, offering faster wireless speeds and improved network performance compared to previous generations. The inclusion of a 2.5 GbE LAN port also ensures a high-speed wired internet connection, making it ideal for online gaming and streaming. Additionally, multiple USB ports, including USB 3.2 Gen 2×2 Type-C, provide ample connectivity options for peripherals and external devices.
The GA-B760M-AORUS-ELITE-AX also shines in the storage department. It supports multiple M.2 slots with PCIe 4.0 and SATA interfaces, allowing for fast and flexible storage solutions. The presence of RAID support adds an extra layer of data protection and performance enhancement. These features ensure that users can take advantage of the latest SSDs and achieve faster boot times and application load speeds.
Aesthetically, the motherboard sports a sleek and modern design with customizable RGB lighting. The RGB Fusion 2.0 software allows users to synchronize the lighting effects with other compatible devices, creating a cohesive and visually appealing setup. The board also features reinforced PCIe slots and memory slots, providing additional durability and support for heavy graphics cards and RAM modules.
Audio performance is another area where the GA-B760M-AORUS-ELITE-AX excels. It is equipped with high-quality audio capacitors and audio noise guard technology to deliver clear and immersive sound. The inclusion of the Realtek ALC897 codec ensures a premium audio experience, whether you are gaming, watching movies, or listening to music. The motherboard also supports 7.1-channel surround sound, providing an enhanced auditory experience.
For those who enjoy customizing and tweaking their system, the GA-B760M-AORUS-ELITE-AX offers extensive BIOS and software support. The UEFI BIOS is user-friendly and provides a range of options for overclocking and system monitoring. The EasyTune software allows users to fine-tune their system settings and monitor performance in real-time. Additionally, the Smart Fan 6 technology provides advanced fan control options, ensuring optimal cooling and quiet operation.
This motherboard offers excellent performance, connectivity, and customization options. Its robust build quality, advanced thermal design, and support for the latest technologies make it an ideal choice for gamers and PC enthusiasts looking to build a powerful and reliable Micro-ATX system. Whether you are a hardcore gamer, a content creator, or a casual user, this motherboard has the features and capabilities to meet your needs.
