SPECIFICATIONS | |
Brand | Gigabyte |
Series | GAMING OC Series |
Model | Radeon RX 7900 XTX GAMING OC 24G (GV-R79XTXGAMING-OC-24GD) |
CHIPSET | |
GPU | Radeon |
Chipset Manufacturer | AMD |
Interface | PCIe 4.0 x16 |
Compute Units | 96 Compute Units |
Ray Accelerators | 96 |
ROPs | 192 |
Stream Processors | 6144 |
Base Clock | 1900MHz |
Game Clock | Up to 2330MHz |
Max Boost Clock | Up to 2525MHz |
GPU Architecture | AMD RDNA 3 Architecture |
GPU Design | 1x TSMC 5nm Graphics Compute Die (GCD). 6x TSMC 6nm Memory Controller Dies (MCD). |
MEMORY | |
Infinity Cache | 96MB |
Effective Memory Clock | 20Gb/s |
Memory Size | 24GB |
Memory Interface | 384-bit |
Memory Type | GDDR6 |
Memory Bandwidth | Up to 960GB/s |
3D API SUPPORT | |
DirectX | Direct3D 12_2 Ultimate |
OpenGL | OpenGL 4.6 |
OpenCL | OpenCL 2.1 |
Vulkan | Vulkan 1.3 |
Shader Model | Shader Model 6.7 |
CONNECTIVITY | |
Ports | 2x DisplayPort 2.1 with HDCP 2.3. 2x HDMI 2.1 with HDCP 2.3. |
HDMI 4K Support | Yes, Up to UltraHD 4K 120Hz |
VR Ready | Yes, Radeon VR Ready Premium |
GENERAL | |
Features | World's First GPU Chiplet Design with one GCD and six MCDs. WINDFORCE Cooling System. Gigabyte Dual BIOS. 100mm Alternate-Spinning Fan Layout. Gigabyte RGB Fusion Integration. PCI Express 4.0 Support. AMD FreeSync Technology. DisplayPort 2.1 UHBR 13.5. HDMI 2.1 VRR. HDMI 4K Support. DisplayPort 2.1 8K Support. Simultaneous AV1 & HEVC Encode and Decode. 8K60 AV1 / H265 / HEVC Decode. 8K60 AV1 / H265 / HEVC Encode. Video Streaming up to 8K. AMD HYPR-RX Game Optimisation. AMD Radeon FreeSync Premium. AMD Radeon Pro Drivers. AMD Radeon VR Ready Premium. AMD FidelityFX Super Resolution. AMD Radeon Image Sharpening. AMD Radeon Anti-Lag. AMD Radeon Chill. AMD Radeon Software. Hardware-Accelerated Ray Tracing. |
POWER REQUIREMENTS | |
Total Graphics Power (TGP) | 350W |
Minimum Recommended Power Supply | 850W |
Recommended Power Supply | 1000W |
Power Connector | 2x 8-Pin PCI PEG |
GENERAL | |
Form Factor | ATX |
Slot Width | 2.5 Slots |
Dimensions | 331 x 138 x 50mm (L x H x W) |
Operating System Support | Windows 10 64-bit. Windows 11 64-bit. Ubuntu x86 64-Bit. Linux x86_64. |
WARRANTY INFORMATION | |
Warranty | 3 Year Warranty |

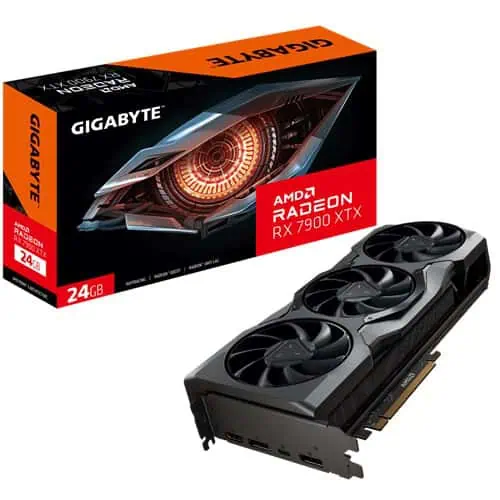

The Gigabyte Radeon RX 7900 XTX GAMING OC 24G is a high-end graphics card designed for gaming and other graphics-intensive applications. Part of AMD’s Radeon RX 7900 series, this card is built on the RDNA 3 architecture, which brings significant improvements in performance and efficiency over previous generations. It features a substantial 24GB of GDDR6 memory, making it ideal for high-resolution gaming, professional applications, and future-proofing. Enhanced ray tracing and AI capabilities offer realistic lighting, shadows, and reflections in games, while the card’s triple-fan Windforce cooling system ensures it stays cool under heavy loads. Factory overclocked for better performance out of the box, the card also includes customizable RGB lighting for a personalized look.
The Gigabyte Radeon RX 7900 XTX GAMING OC 24G typically includes multiple display outputs, such as HDMI 2.1 and DisplayPort 1.4, allowing for the connection of multiple monitors and VR headsets. With a high count of stream processors and high base and boost clock speeds, this GPU is built to handle demanding tasks. The 384-bit memory interface supports the large 24GB GDDR6 memory, while the card’s dimensions and cooling system require ample space in a PC case and multiple power connectors.
This graphics card excels in gaming, capable of running the latest AAA titles at high settings and resolutions, including 4K. It is also well-suited for content creation, including video editing and 3D rendering, due to its large memory and powerful GPU. Additionally, it is ready for virtual reality applications with its high performance and multiple output options. The Gigabyte Radeon RX 7900 XTX GAMING OC 24G is compatible with AMD’s Adrenalin software suite for driver updates, performance tuning, and monitoring. It comes with a manufacturer warranty and customer support from Gigabyte, making it a top choice for enthusiasts and professionals seeking top-tier performance and advanced features.
