SPECIFICATIONS
Brand	ASUS
Series	PRIME B660
Model	PRIME B660-PLUS D4
Form Factor	Micro-ATX
CPU	Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors. Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*.
Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4. 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*". Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem.
Graphics	1 x DisplayPort. 1 x D-Sub port. 1 x HDMI® port. Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' resolution.
Expansion Slots	Intel® Core™ Processors (14th & 13th & 12th Gen). 1 x PCIe 4.0 x16 slot. Intel® B660 Chipset. 1 x PCIe 3.0 x16 slot (supports x4 mode). 2 x PCIe 3.0 x1 slots. Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage	Intel® Core™ Processors (14th & 13th & 12th Gen). M.2_1 slot (Key M), type 2242/2260/2280. - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode). 4 x SATA 6Gb/s ports. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x Realtek 2.5Gb Ethernet. ASUS LANGuard.
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe). Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1 x USB 3.2 Gen 1 port (1 x Type-A). 2 x USB 2.0 ports (2 x Type-A). Front USB (Total 7 ports). 1 x USB 3.2 Gen 1 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. - Audio Features. - Audio Shielding. - Power pre-regulator reduces power input noise to ensure consistent performance. - Premium audio capacitors. - Dedicated audio PCB layers. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1 x USB 3.2 Gen 1 port (1 x Type-A). 2 x USB 2.0 ports (2 x Type-A). 1 x DisplayPort. 1 x D-Sub port. 1 x HDMI® port. 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks.
Internal I/O Connectors	1 x 4-pin CPU Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. 1 x USB 3.2 Gen 1 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. 3 x Addressable Gen 2 headers. 2 x AURA RGB headers. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x M.2 slot (Key E). 1 x S/PDIF Out header. 1 x SPI TPM header (14-1pin). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thunderbolt™ header.
Special Features	ASUS 5X PROTECTION III. - DIGI+ VRM. - Enhanced DRAM Overcurrent Protection. - ESD Guards. - LANGuard. - Overvoltage Protection. - SafeSlot Core+. - Stainless-Steel Back I/O. ASUS Q-Design. - Q-DIMM. - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]). - Q-Slot. ASUS Thermal Solution. - M.2 heatsink. - VRM heatsink design. AURA Sync. - AURA RGB headers. - Addressable Gen 2 headers.
Software Features	ASUS Exclusive Software. Armoury Crate. - AURA Creator. - AURA Sync. - Fan Xpert 2+. AI Suite 3. - Performance And Power Saving Utility. TurboV EVO. EPU. DIGI+ VRM. ASUS CPU-Z. Norton Anti-virus software (Free Trial version). WinRAR. UEFI BIOS. ASUS EZ DIY. - ASUS CrashFree BIOS 3. - ASUS EZ Flash 3. - ASUS UEFI BIOS EZ Mode.
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	2 x SATA 6Gb/s cables. 1 x I/O Shield. 1 x M.2 Rubber Package. 2 x M.2 SSD screw packages. 1 x M.2 Key E screw package. 1 x Support DVD. 1 x User guide.
Operating System	Windows® 11. Windows® 10 64-bit.

The ASUS PRIME B660-PLUS D4 Alder Lake LGA1700 ATX Desktop Motherboard is designed to unleash the full potential of the latest Intel Alder Lake processors. Featuring the LGA1700 socket, this motherboard supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors, offering a robust platform for a wide range of computing needs, from gaming to content creation. Its ATX form factor ensures compatibility with a variety of cases and provides ample space for a plethora of components, making it a versatile choice for any desktop build.

One of the standout features of the ASUS PRIME B660-PLUS D4 is its support for DDR4 memory, allowing users to install up to 128GB of RAM across four DIMM slots. This provides excellent memory performance and flexibility, accommodating demanding applications and multitasking environments. The motherboard supports memory speeds up to 5333 MHz (OC), ensuring smooth and responsive system performance, whether you’re gaming, streaming, or working with resource-intensive applications.

Connectivity is a strong suit of the ASUS PRIME B660-PLUS D4. It boasts a comprehensive range of ports and slots, including two M.2 slots and six SATA 6Gb/s ports for extensive storage options. The M.2 slots support PCIe 4.0 for faster data transfer rates, making it ideal for NVMe SSDs, which significantly reduce load times and improve overall system responsiveness. Additionally, the motherboard features a range of USB ports, including USB 3.2 Gen 2 and USB 2.0, catering to various peripheral devices and ensuring fast data transfer speeds.

The motherboard’s robust power delivery system ensures stable performance and reliability. The 10+1 DrMOS power stages provide precise control and efficient power to the CPU, enhancing performance under heavy loads. Coupled with high-quality capacitors and chokes, the ASUS PRIME B660-PLUS D4 delivers long-lasting durability and reliability, making it a solid foundation for any high-performance desktop system.

Cooling is critical for maintaining system stability and performance, and the ASUS PRIME B660-PLUS D4 excels in this area. It features comprehensive cooling options, including multiple fan headers and hybrid fan headers, allowing for a mix of PWM and DC fans. Additionally, the motherboard includes dedicated headers for AIO pumps and water-cooling setups, giving users the flexibility to create a customized cooling solution tailored to their needs. ASUS’s Fan Xpert 4 software further enhances cooling control, enabling fine-tuned adjustments for optimal thermal performance.

The ASUS PRIME B660-PLUS D4 also places a strong emphasis on audio quality. It is equipped with high-definition audio, powered by the Realtek ALC897 codec, which delivers pristine audio output for an immersive listening experience. The motherboard also features audio shielding and premium Japanese capacitors, which help reduce noise and ensure clear, high-fidelity sound, whether you’re gaming, watching movies, or listening to music.

For those who value aesthetics, the ASUS PRIME B660-PLUS D4 does not disappoint. It features an understated, professional design with a black PCB and subtle grey accents. The motherboard includes ASUS’s Aura Sync RGB lighting, which allows users to customize the lighting to match their build’s theme. With support for a wide range of compatible RGB devices, users can create a cohesive and visually striking system that reflects their personal style.

In summary, the ASUS PRIME B660-PLUS D4 Alder Lake LGA1700 ATX Desktop Motherboard is a versatile and powerful option for users looking to build a high-performance desktop. Its support for the latest Intel processors, extensive connectivity options, robust power delivery, and comprehensive cooling solutions make it a reliable choice for a wide range of applications. Whether you’re a gamer, content creator, or professional, this motherboard provides the features and performance needed to build a cutting-edge system that can handle the most demanding tasks with ease.

Manufacturer’s Site: Link
Product Page: Link

Sold out

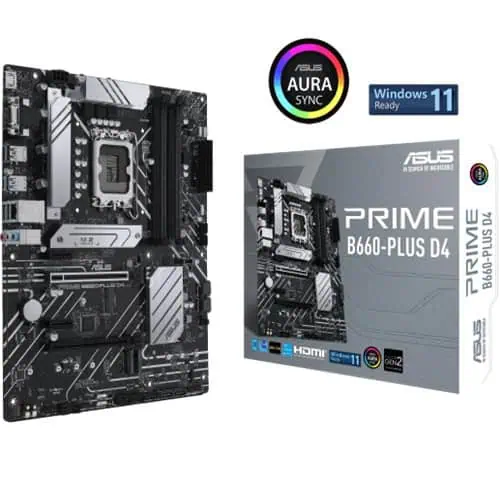

ASUS PRIME B660-PLUS D4 Alder Lake LGA1700 ATX Desktop Motherboard

Click to enlarge

Back to products

ASUS PRIME B660-PLUS D4 Alder Lake LGA1700 ATX Desktop Motherboard

Name: ASUS PRIME B660-PLUS D4 Alder Lake LGA1700 ATX Desktop Motherboard
SKU: 7647
Price: 3000.00 ZAR
Availability: OutOfStock

R3000,00

Out of stock

Compare

Add to wishlist

Categories: Intel Motherboards, Motherboards
